A type layer chicken battery cage system
Capacity: 90 – 160 Bird/Set.
Tiers: 3 Tiers, 4 Tiers.
Material: International Q235 steel.
LIVI Machinery specializes in the research and development of automated and intelligent poultry farming equipment, providing quality poultry farming equipment and comprehensive and efficient poultry breeding solutions for the global market. Our products cover layer chicken, broiler chicken, baby chick and breeders feeding equipment and other related poultry equipment, and have been exported to Southeast Asia, Africa, Central Asia and South America, etc.
| Brief Details | |
| Material | International Q235 steel. |
| Anti-corrosion treatment process | Electrostatic spraying, Aluminum-zinc alloy, Hot-dip galvanized |
| Life Time | 15 – 20 Years |
| Certificate | ISO9001, ISO14001, OHSAS18001, CE, SONCAP, PVOC |
| Production Lead Time | Depending on the order quantity. Normally about 10 days for 20ft container, 15 days for a 40ft container. |
| Supply Ability | 10000 Set/Month |
| Packing Method | Normal export packing. 20ft / 40ft container. |
| Payment Method | T/T, L/C at sight |
| Trading Method | EXW, FOB, CFR, CIF |
| A type layer chicken battery cage specification | ||||
| type | Model | Birds Qty / Door | Birds Qty / Set | Specification |
| A-Type | 3-Tier 4-Door | 4pcs | 96pcs | 1950mm*350mm*380mm |
| 3-Tier 5-Door | 3pcs | 90pcs | 1950mm*350mm*380mm | |
| 4-Tier 4-Door | 4pcs | 128pcs | 1950mm*350mm*380mm | |
| 4-Tier 5-Door | 3pcs | 120pcs | 1950mm*350mm*380mm | |
| 4-Tier 5-Door | 4pcs | 160pcs | 1950mm*450mm*410mm | |
Equipment list of the layer cage system:
Basic Component:
Chicken layer cage mesh, Chicken layer cage frame, Feeding trough, Water Pipe, Water Pressure Adjuster, Drinking Nipple.
Optional automatic equipment:

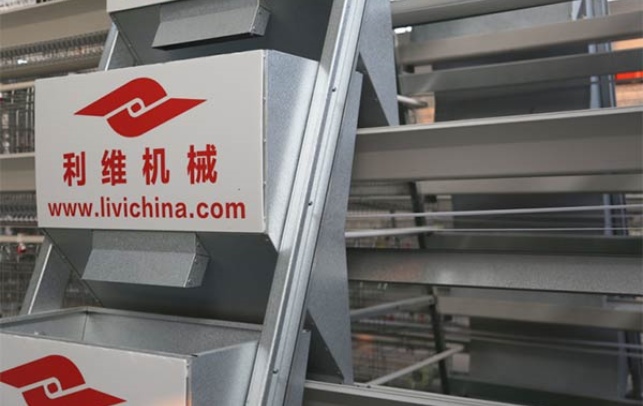

- Automatic feeding system: The feeding process all the use of automated control, it can adjust the amount of materials. It prevents the waste of feed.
- Automatic drinking system: High-quality water drinking cups, pressure valves and 360-degree drinking nipples can effectively prevent the water leakage and drinking system adopt the closed piping system, which can minimize the water pollution.
- Automatic egg collecting system: Perfect roll out angle of the bottom mesh minimize the breakage. It has a powerful ability to collect eggs, collecting up to 20000 eggs per hour, collecting and conveying eggs between different chicken sheds.

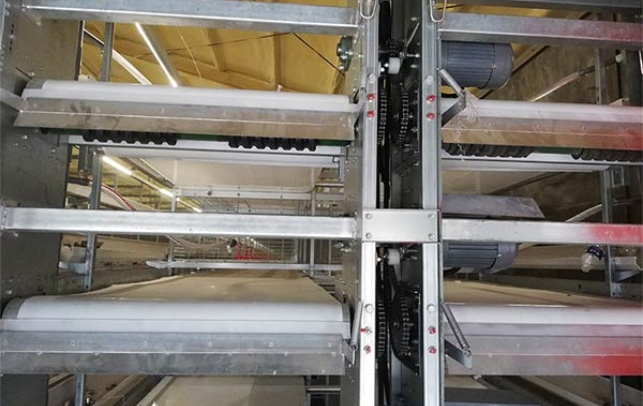

- Automatic manure removing system: The conveyor belt type is suitable for both A-type cages and H-type cages, which can reduce the labor intensity and labor cost, keep the chicken shed dry and clean.

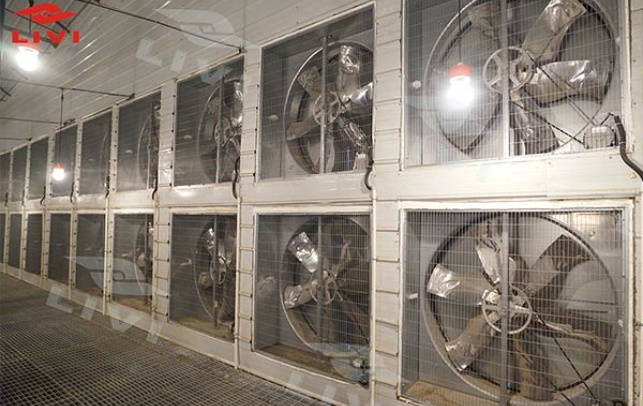

- Central integrated control system: This system is a modular system which manages all aspects of a poultry house, such as climate, temperature, feeding, drinking, weighing and ventilation system. The management computer is the core of the poultry farm for you to monitor the whole poultry farm easily.
Features:
A type layer chicken battery cage system has the feature of simple structure, easy operation and maintenance, high option of the automatic equipment, lower input costs and reap fast, customer could choose the chicken cage only, cage with semi or high-automatic equipment according to your different requirement.
H type layer chicken battery cage system has the feature of high-automation, high-density, effectively save the land and labor cost, the separation of the chicken shed and people living zone avoids the disease spread, fully automatic manure removing system effectively decrease the environmental pollution, adding the intelligent environmental controling system, which is the best choice of the intensive & large scale poultry farm.
